Description

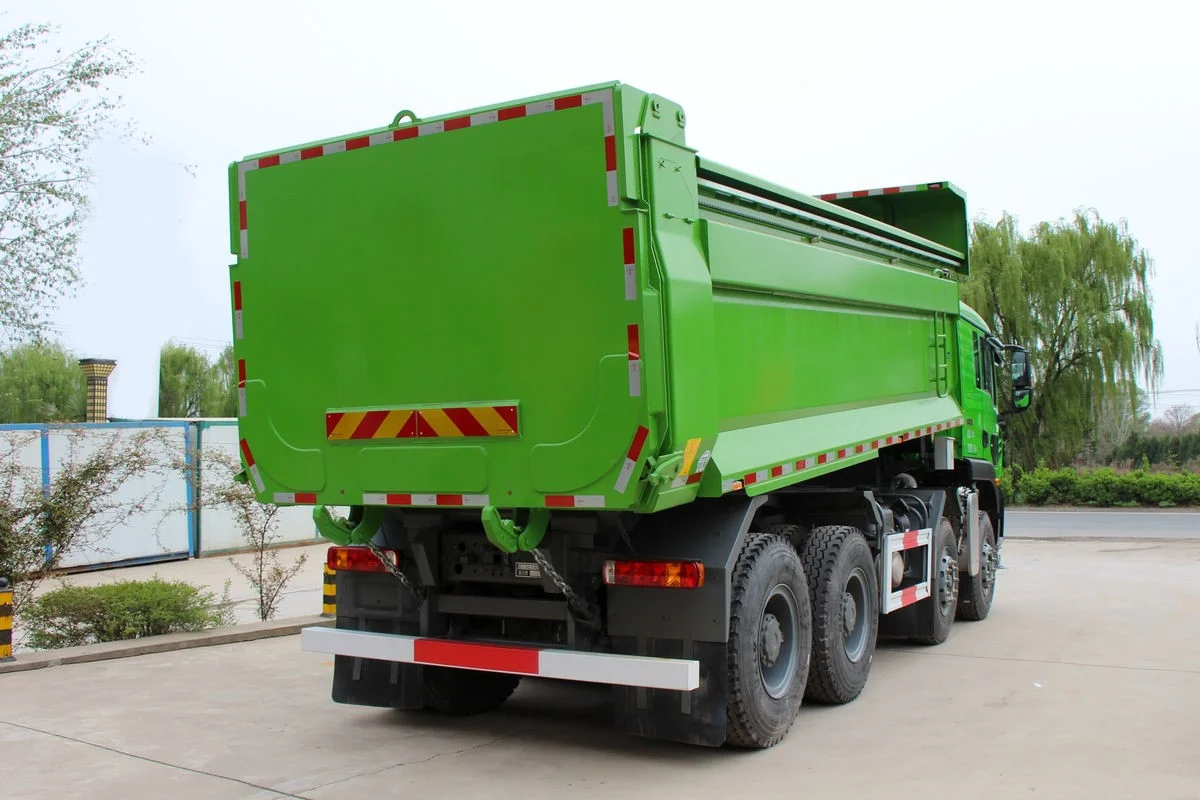

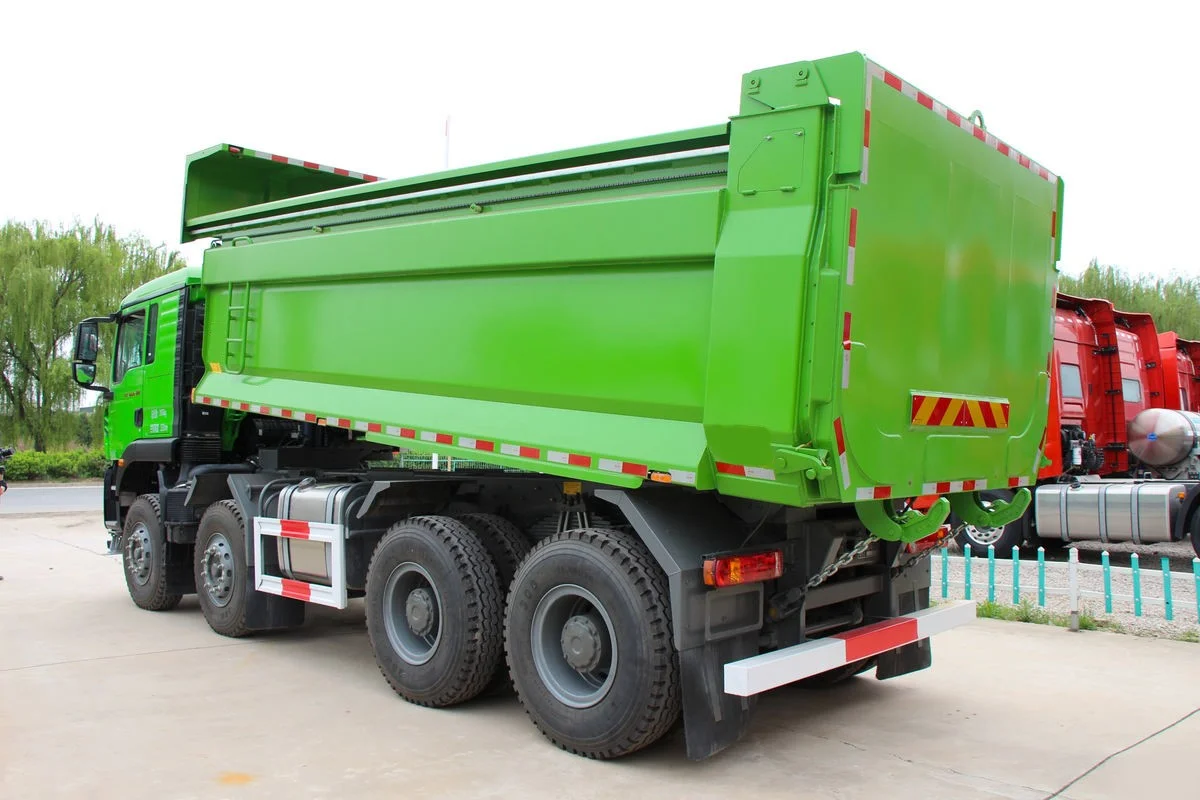

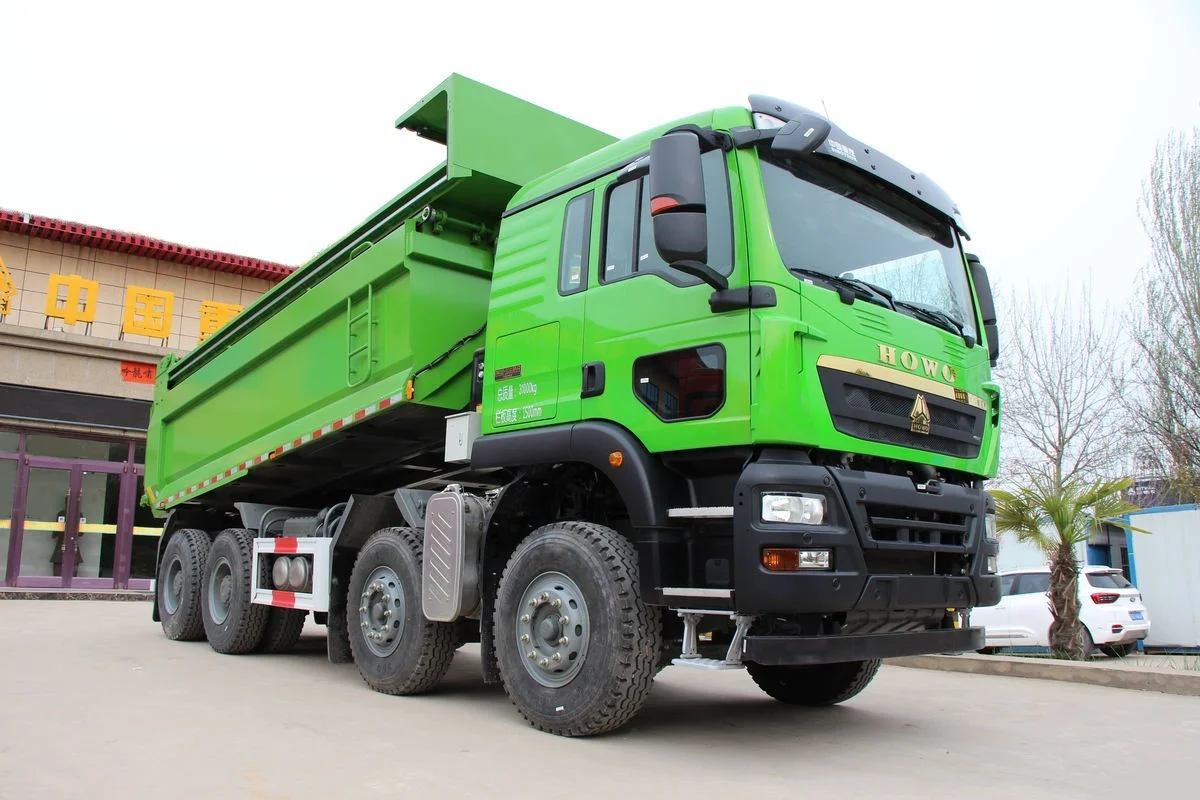

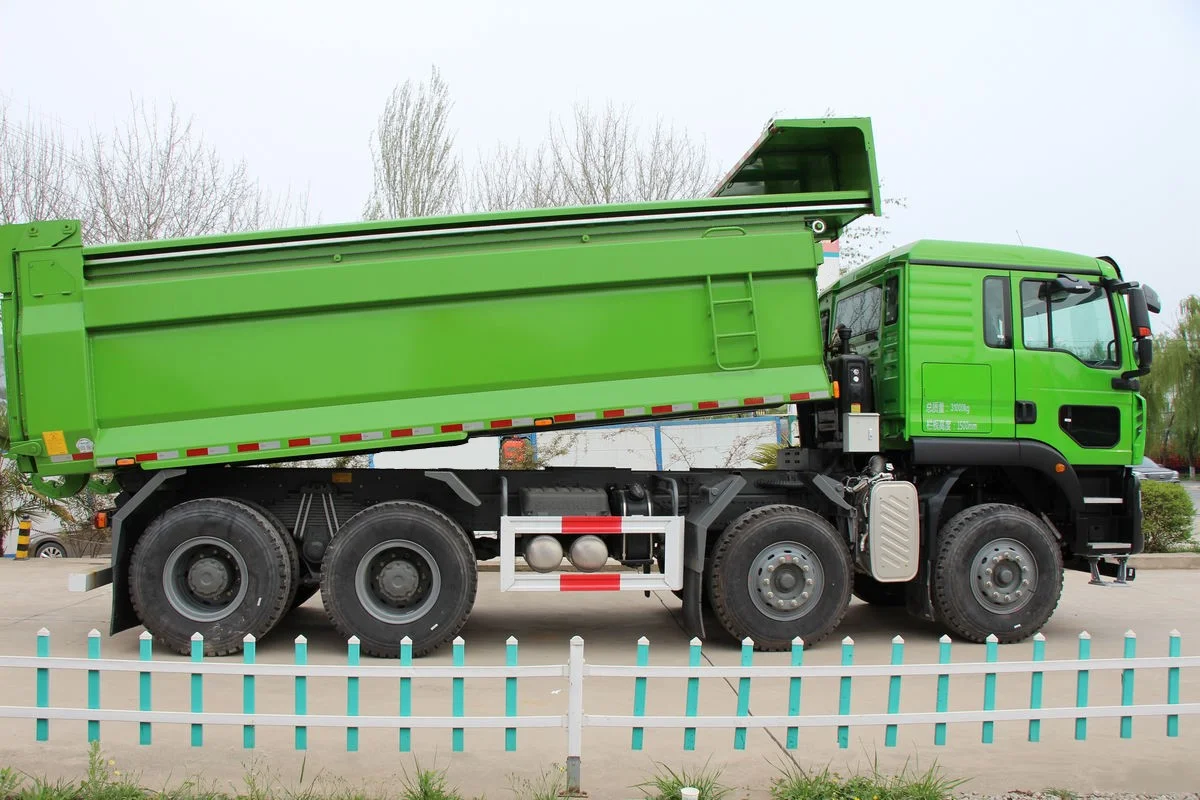

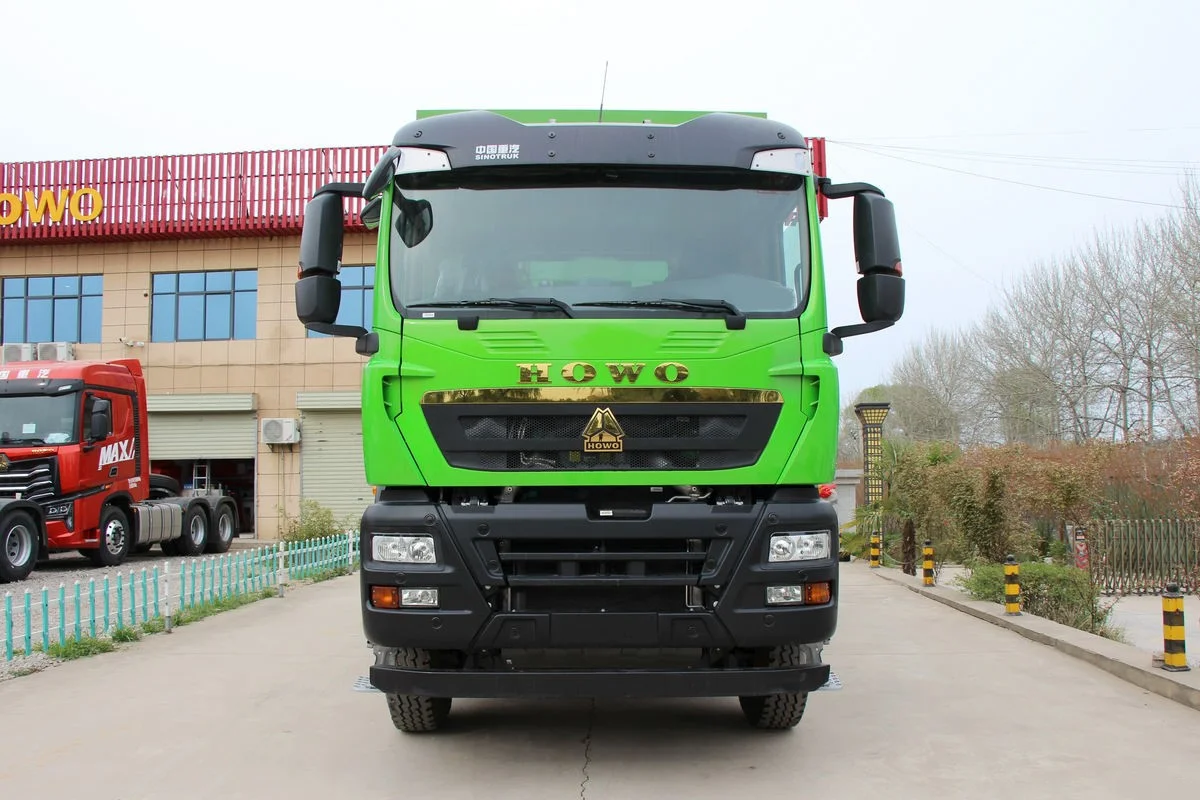

The HOWO TX 460HP 8X4 Dump Truck is designed for demanding construction, mining, and infrastructure projects. It delivers strong power and reliable performance, making it an excellent choice for heavy material transport in diverse working environments.

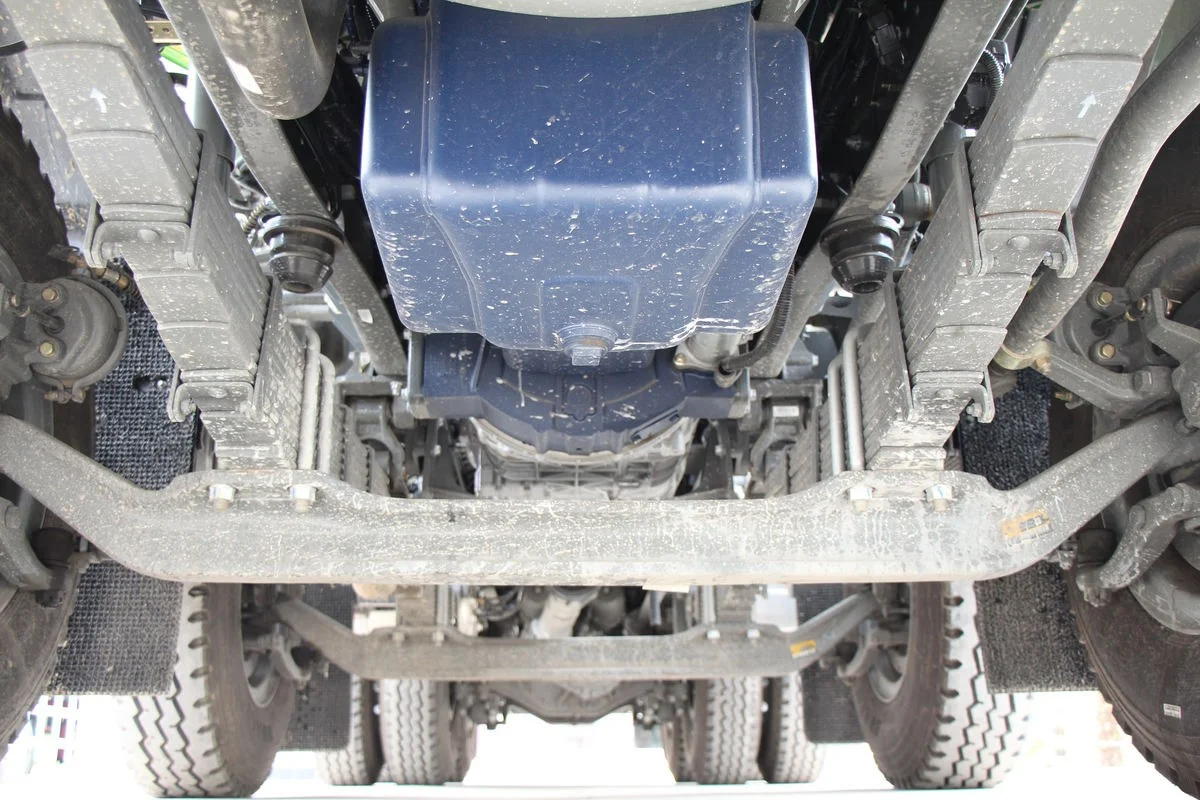

The Weichai WP12.460E50 engine provides efficient fuel consumption and steady output. Its reinforced chassis and durable suspension system ensure stability, even under maximum load. In addition, the spacious cab enhances driver comfort and improves safety during long working hours.
Moreover, the truck’s hydraulic lifting system allows smooth unloading, which reduces downtime and boosts on-site efficiency. The robust structure and high payload capacity give businesses a cost-effective solution that balances strength with durability.
With advanced design, dependable components, and practical configurations, the HOWO TX 460HP 8X4 Dump Truck helps enterprises increase productivity while lowering operating costs.
✅ Key Specifications
| Feature | Specification |
|---|---|
| Model | ZZ3317V326GF1 |
| Drive Type | 8X4 |
| Engine | Weichai WP12.460E62, 6-cylinder, diesel, Euro VI |
| Horsepower | 460 HP |
| Max Torque | 2200 N·m @ 1000–1400 rpm |
| Transmission | HW25712XSL, 12F + 2R manual |

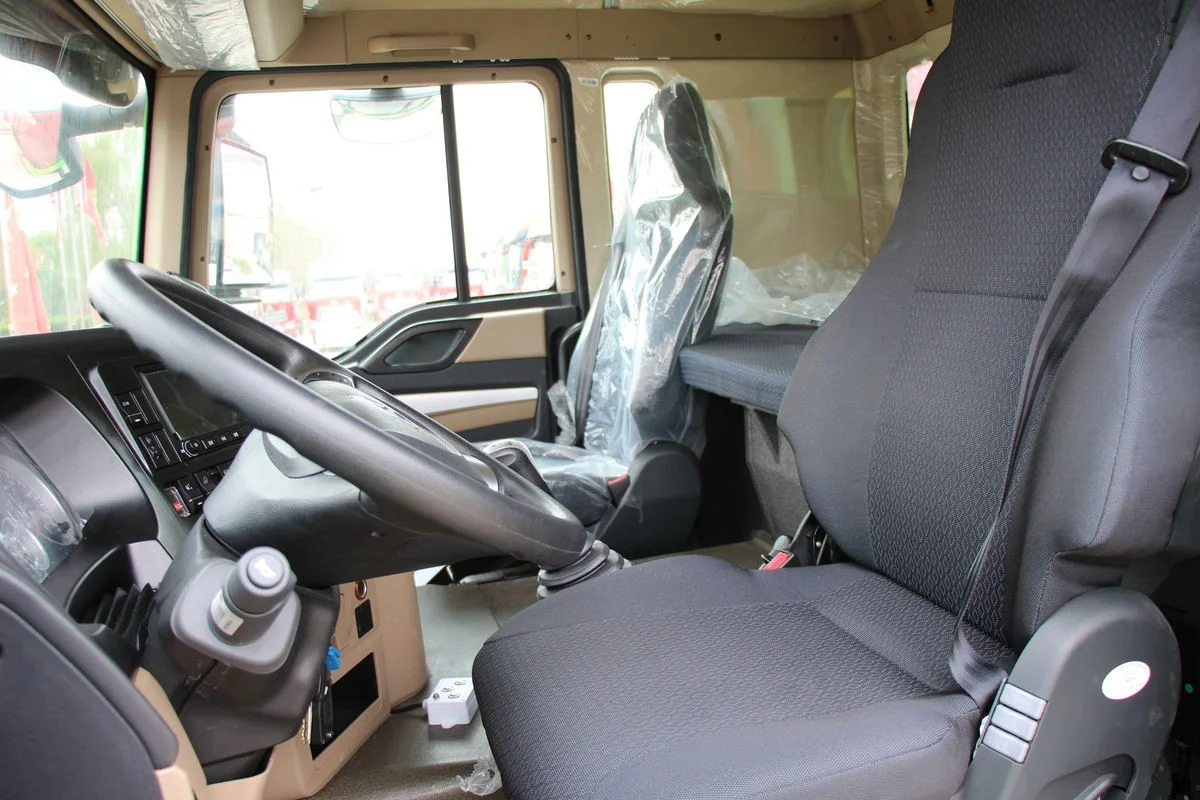

| Cab | Standard cab, air-suspension driver seat, LHD |
| Overall Dimensions | 9.63 × 2.55 × 3.45 m |
| Wheelbase | 1800+3225+1350 mm |
| Front Axle Load | 6.5–7 t |
| Rear Axle Load | 17.5 t (tandem) |
| Total Weight | 15.5 t |
| Gross Vehicle Weight | 31 t |

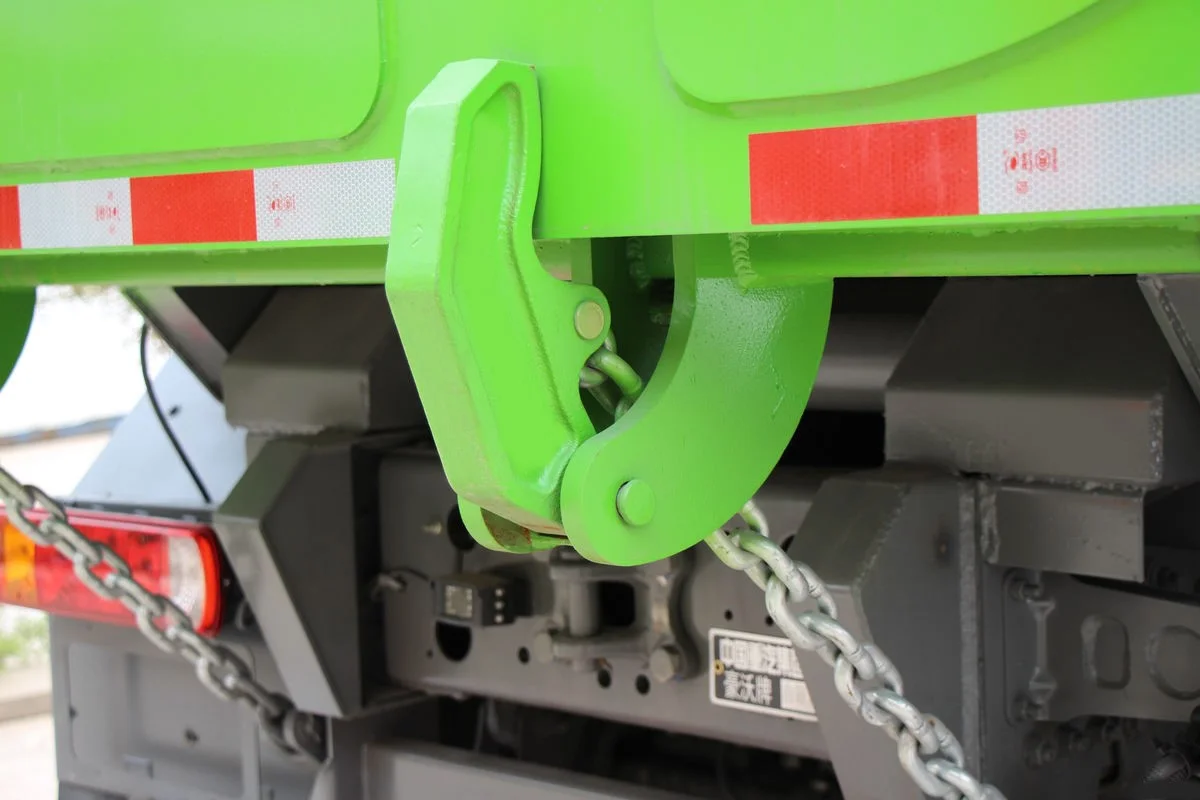

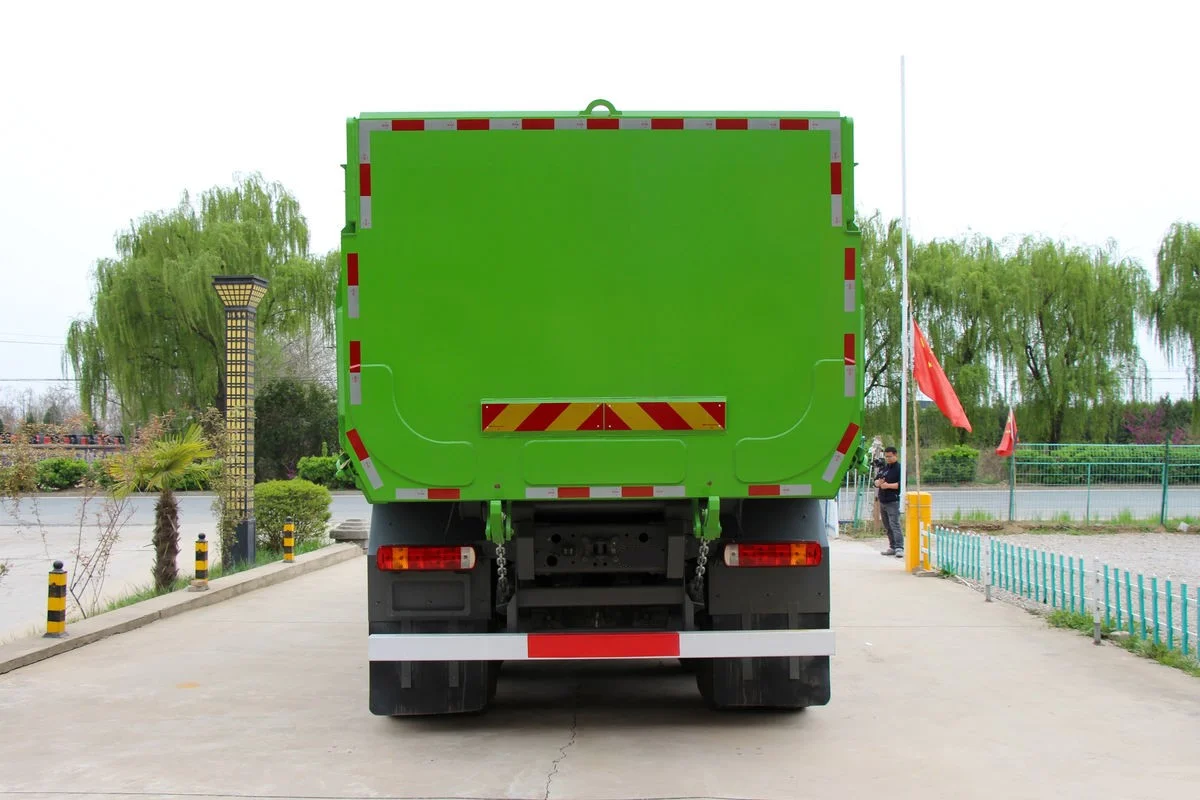

| Tipping Body | Hydraulic, self-unloading |

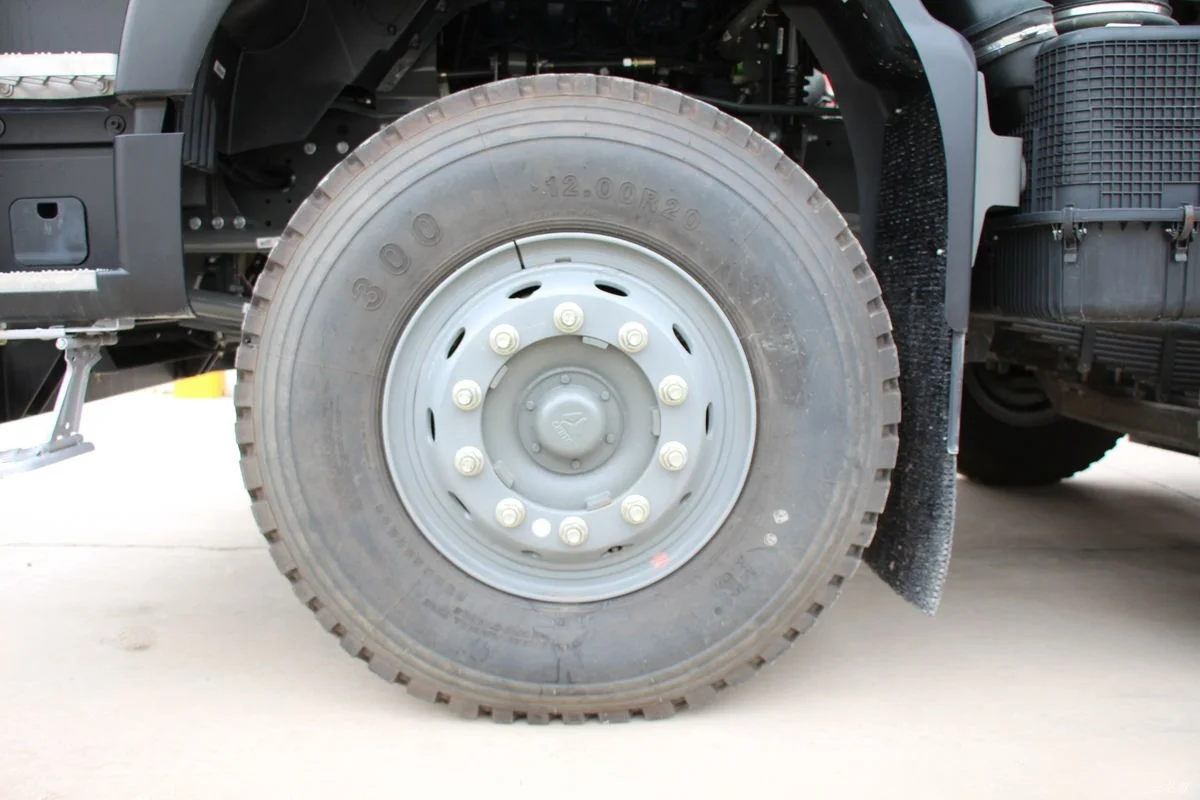

| Tire | 12.00R20, 18 PR, 12 pcs |
| Approach / Departure Angle | 17° / 21° |
| Fuel Tank | 400 L, aluminum |
| Brakes | ABS, dual-circuit compressed air |
✅ Shipping Scenarios
The Sinotruk HOWO TX 460HP 8X4 Dump Truck can be shipped according to your order size and destination. When multiple units are purchased, bulk shipment is recommended as it provides cost-effective sea transport. For single or oversized trucks, flat rack or Ro-Ro shipping is often preferred because it allows efficient loading with minimal dismantling. Moreover, container shipment with partial dismantling is available, offering additional protection for smaller orders during transit.
Before departure, our logistics team conducts a thorough inspection, secures all components, and manages loading with care. As a result, the trucks are delivered safely and on time. This professional process guarantees that every unit arrives in excellent condition, fully prepared for heavy-duty operations worldwide.
